Fiberglass storage tank (container)

Classification: Products

Keywords: polyester glass steel pipe, polyester glass steel pipe

The main products are: polyester glass fiber reinforced plastic pipe, epoxy glass fiber reinforced plastic pipe, glass fiber reinforced plastic equipment container, tower, flue, glass fiber reinforced plastic pultrusion molding profile and carbon fiber series and other high-performance fiber composite materials.

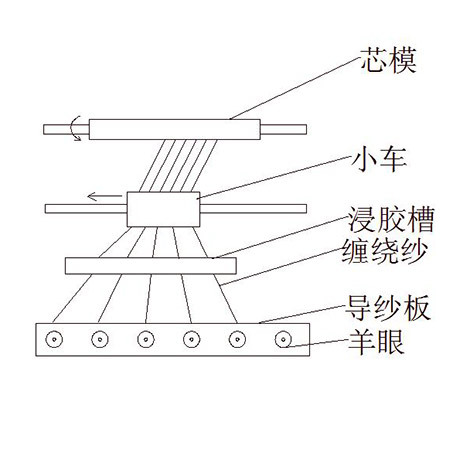

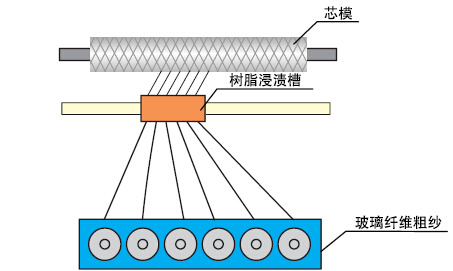

Microcomputer control winding FRP storage tank (container) has the characteristics of light weight, high strength, corrosion resistance, anti-seepage, heat insulation, insulation, non-toxic and smooth surface. The use of high tension, multi-angle, multi-point, wrapped head type integral winding method, can meet the storage needs of organic, inorganic solvents and chemical corrosive media, to meet the resistance to internal pressure, external pressure, shear, bending and other mechanical requirements. According to different storage media, the use of composite thin shell moment-free theory design wall thickness, in accordance with domestic and foreign standards of production and inspection, products include glass fiber reinforced plastic horizontal, vertical, elliptical, rectangular, tower, tank, on-site large and non-standard, composite equipment, can be widely used.

025-57492608

admin@nnfrp.com

immediate consultation

Fiberglass storage tank (container)

Microcomputer control winding FRP storage tank (container) has the characteristics of light weight, high strength, corrosion resistance, anti-seepage, heat insulation, insulation, non-toxic and smooth surface. The use of high tension, multi-angle, multi-point, wrapped head type integral winding method, can meet the storage needs of organic, inorganic solvents and chemical corrosive media, to meet the resistance to internal pressure, external pressure, shear, bending and other mechanical requirements. According to different storage media, the wall thickness is designed by using the moment-free theory of thin shell of composite materials, and the products are produced and inspected according to domestic and foreign standards. The products include FRP horizontal, vertical, elliptical, rectangular, tower, tank, large-scale and non-standard on-site composite equipment, which can be widely used in petrochemical, food brewing, electric power and environmental protection, pharmaceutical electronics, seawater desalination, mining metallurgy, packaging and transportation and other industries.

Food-grade FRP storage tanks (including storage tanks, drying tanks, fermentation tanks, mixing tanks, disinfection tanks, pure water tanks, etc.) are made of food-grade resin as matrix materials and are made by microcomputer-controlled winding process. They are non-toxic, tasteless, safe and hygienic. They have food safety licenses to ensure product hygiene requirements and are widely used in soy sauce, vinegar, sauce and other condiments brewing and fermentation processes and fresh water, ultrapure water and other food industries.

1. product specifications

Diameter: DN600 ~ DN25000 mm (mm), volume: 1~5000 cubic meters (m³);

2. execution standard

JC/T587-2012 "glass fiber winding reinforced thermosetting resin corrosion resistant vertical tank Filament wound glass fiber reinforced thermoset resin corrosion resistant vertical tanks"

JC/T718-2012 "glass fiber winding reinforced thermosetting resin corrosion resistant horizontal tank Filament wound glass fiber reinforced thermoset resin corrosion resistant horizontal tanks"

HG/T20696-1999 Design Regulations for FRP Chemical Equipment

SY/T0603-2016 Specification for Glass Fiber Reinforced Plastic Storage Tanks

GB/T14354-2008 "glass fiber reinforced unsaturated polyester resin food containers"

ASTM D3299 "Winding Molding Glass Fiber Reinforced Thermosetting Resin Chemical Resistant Container Specification for Filament-Wound Glass Fiber Reinforced Thermoset Resin Chemical-Resistant Tanks"

ASTM D4097 Contact Molded Glass-Reinforced Thermosetting Resin Corrosion Resistant Vessels Standard Specification for Contact-Molded Glass-Fiber-Reinforced Thermoset Resin Corrosion-Resistant Tanks

　　ASME/ANSI RTP-1《增强热固性树脂耐腐蚀设备Reinforced Thermoset Plastic Corrosion Resistant Equipment》

Forging is a processing method that uses forging machinery to apply pressure to metal blanks to produce plastic deformation to obtain forgings with certain mechanical properties, certain shapes and sizes. Forging (forging and stamping) is one of the two major components. Forging can eliminate the defects such as loose casting in the smelting process and optimize the microstructure. At the same time, due to the preservation of the complete metal flow line, the mechanical properties of forgings are generally better than castings of the same material. Related machinery in high load, severe working conditions of important parts, in addition to the shape of a relatively simple available rolling plate, profile or welding parts, the use of forgings.
